LED pixel light

  • 5V 12mm RGB LED pixel light
  • 5V 12mm RGB LED pixel light
  • 5V 12mm RGB LED pixel light
  • 5V 12mm RGB LED pixel light
5V 12mm RGB LED pixel light5V 12mm RGB LED pixel light5V 12mm RGB LED pixel light5V 12mm RGB LED pixel light

5V 12mm RGB LED pixel light

  • Application:

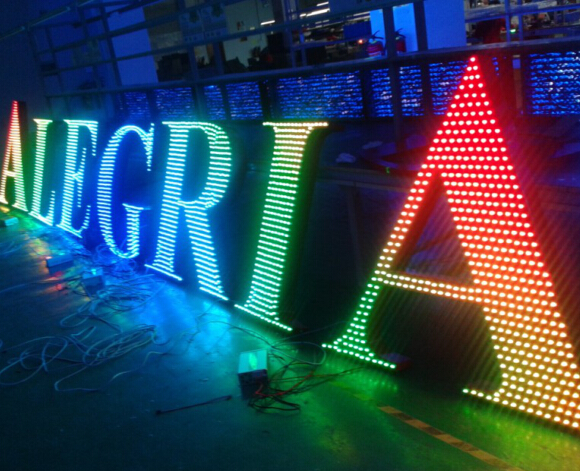

  • 1. Advertising sign letters
  • 2. digital panel
  • 3. Christmas Tree lighting etc
  • Product description: HD1201S05 12mm Round LED Pixel Light
  • INQUIRY

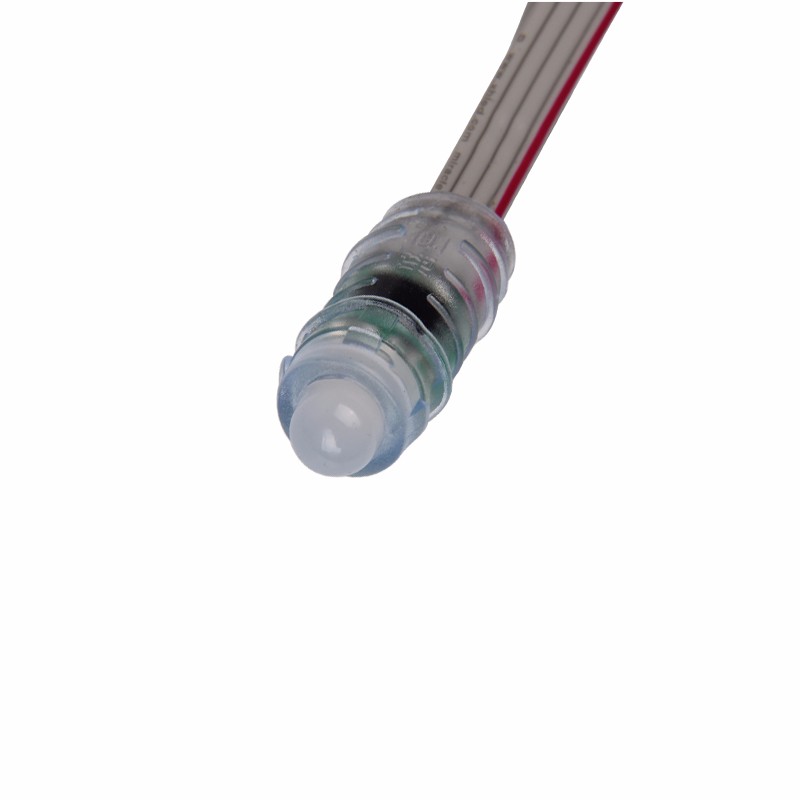

HD1201S05 12mm Round LED Pixel Light

♦♦ Specification

Item

12mm String LED Pixel

Model

HD1201S05---12mm String LED Pixel

Storage Temperature

-40℃-60℃

Operating Temperature

-40℃-60℃

Color Rendering Index(Ra)

80

Viewing Angle

120 °

Power Dissipation

0.3W

Power

0.3W

Optical Attenuation

1%

Luminous Flux

15lm

Working Voltage DC05V

Chip Source

Taiwan Epistar

Body Material

PVC

LED Type

F8

Size

12mm

Lifespan

30,000hours

Certification

CE, ROHS

Color

Full color change

OEM/ODM

Welcome

Protection

IP67

Qty / String

50pcs

♦♦ Features

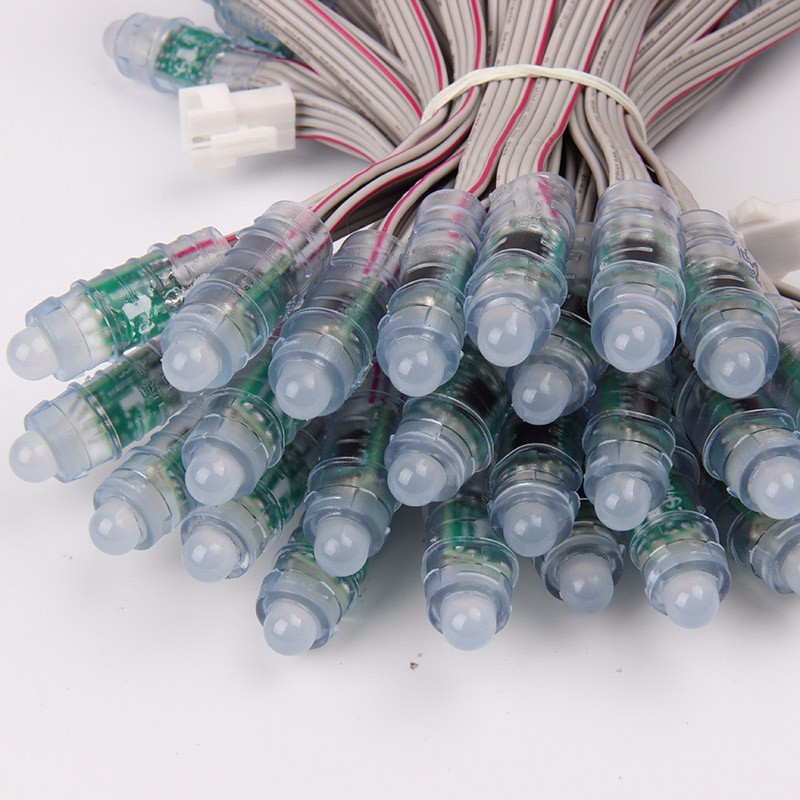

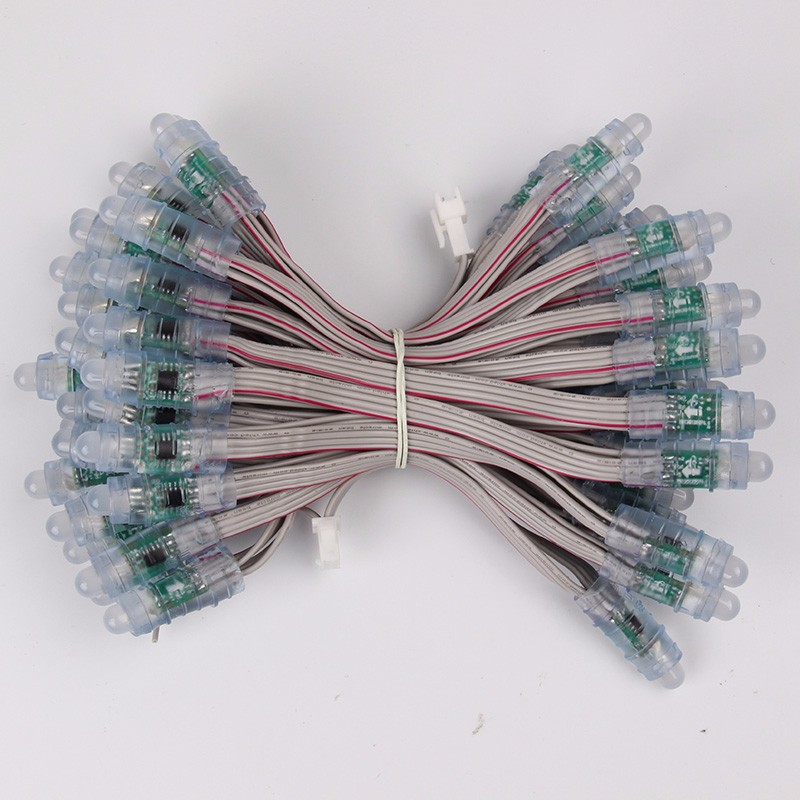

1.This round super colorful 12mm pixel LED is 50pcs in a string,
2.8cm 20AWG wire length between each LED,wire size:20A G,

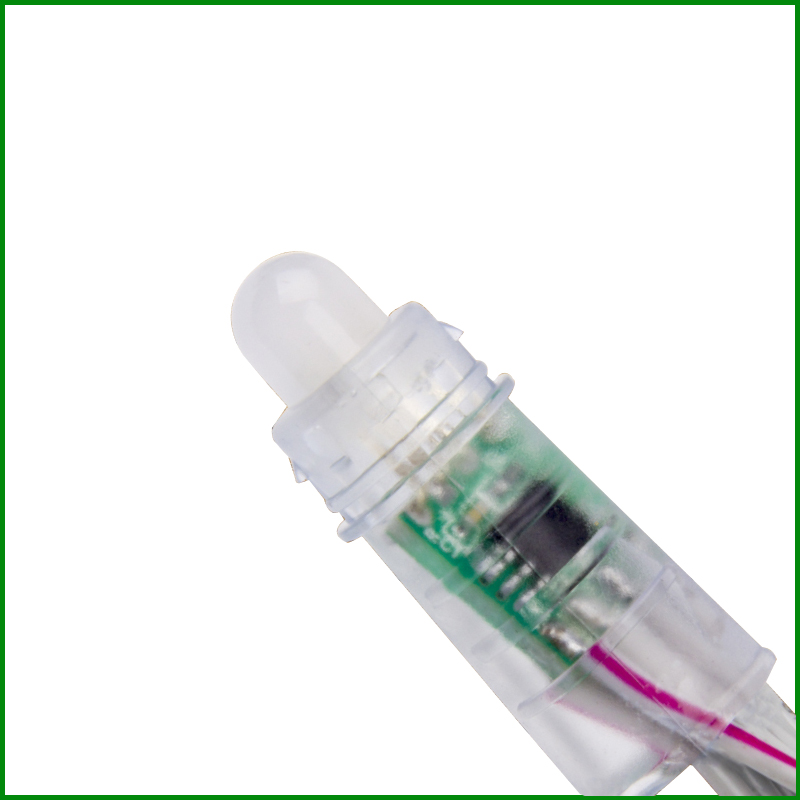

3.It used a silicon case make waterproof by inject glue, seal structure
4.12mm diameter 35mm deep  from the top of the LED to the back of the rubber,
5.DC5V power requirement only(do not exceed 6VDC or  short circuit) - no polarity protection,
6.4Pin JST SM connector (non-waterproof) soldered in each end of string,
7.The extra 2 single wire for powering in input side (We also have other chip version:WS2811,LPD6803,SM16716, UCS1903).

♦♦ Product Show
